The Grampian 46
This page was designed and submitted by Tim Nye, January 3, 2007

The largest boat produced by Grampian was the 46.  The following is a summary of information I’ve been able to find on the Grampian 46.  Numbers in the square brackets, e.g. [1], refer to references given at the end of this article.  No doubt more will be uncovered as time goes by, and will be added to this page.  Most photos on this page can be clicked to bring up a larger view.

History of the Design

The G46 descended from William H. (Bill) Tripp Jr.’s design called the U.S. 41.  This was a center cockpit yawl design, as shown in Figure 1 [1].  Grampian built at least some of these in Oakville about 1965-7.  It should be noted that Bill Tripp Jr. is not to be confused with his son, Bill Tripp III, who designs racers and megayachts at his company Tripp Designs.  Bill Tripp Jr. died in a car accident in 1971 [2].


U.S. 41 profile view

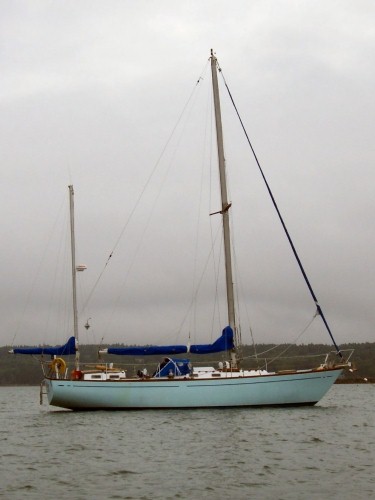

Figure 1: 1967 U.S. 41 built by Grampian Marine

Bill Tripp later stretched the U.S. 41 into the U.S. 46, which is the boat Grampian eventually marketed as the G46.  A short review of this design appeared in print [3]:

U.S. 46 – Twin Centerboarder
Builder’s Comments
        This interesting yacht is Bill Tripp’s development of his earlier U.S. 41, a very successful design several of which, including Fantasy, Kimwanda and Seal, have proven to be fast racing yachts as well as comfortable distance cruisers.
        Adler & Barbour has developed the present accommodation, rig and detailing, and is building the yachts to an extremely high specification.
        The yacht is basically a keel boat of moderate displacement and draft, with supplementary twin tandem centerboards providing precise adjustment of lateral plane for complete control under severe conditions.
        The long straight keel permits hauling on primitive ways, as well as grounding with less than the usual hazards, and this ship is worked out for distance cruising with two people aboard.
        The cruising rig shown incorporates releasing inner
forestay with self-trimming staysail, large roller reefing mizzen as well as main.  Storm trysail gear, genoa and spinnaker gear standard.
        An anchor windlass forward of the staysail plus stainless stemhead with double roller chocks simplifies anchor handling.  The large afterdeck affords room for a dinghy in cradle.
        The most unusual feature is, of course, the center cockpit offering maximum security at sea and providing a roomy owner’s stateroom aft with companionway and private head.  The forward cabin is very complete with dressers, many lockers, head with shower, and double doors latching athwartship providing privacy and a dressing area as well.
        The main saloon is designed to be a social area and not normally to double as a sleeping cabin.  It is separated from the galley by a partial bulkhead.

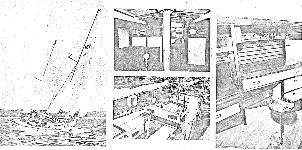

U.S. 46 Interior Photos
Comment by Edward S. Brewer, N.A.
        The U.S. 46 appears to be on of those compromise designs which are becoming all too rare in these days of tall rigs and thin fins.  Bill Tripp has designed a comfortable, seaworthy auxillary which promises to be a good performer and which will provide the cruising man with an easy steering, shoal draft hull.
        I do question the added cost and complexity of the twin centerboards.  In theory, two boards allow the skipper to adjust the lateral plane to best advantage but I have never encountered any problem in balancing a single centerboard craft under a wide variety of sail combinations.
        The rig is relatively low by present day standards, well stayed and easily handled.  While termed a “yawl” by the builders, probably due to the location of the mizzen mast, the proportions are more akin to a ketch – a good cruising rig but one not noted for its racing ability.
        One option that could be offered, however, would be a cutter rig and there are many who might prefer its better windward performance for racing.
        Two arrangements are offered – racing and cruising versions.  For either purpose I would prefer the racing layout as the cruising setup eliminates a very useful work bench/
chart table and convenient passageway in favor of the dubious advantages of another two berth cabin.  The cruising version also has an 85 hp diesel, somewhat more power than necessary for a 33-foot waterline, 11 ton displacement hull, while the racing version has a more practical 40 hp engine.
        There is no doubt that the U.S. 46 is one of the more sensible cruisers in her size range.  She promises a combination of comfort, performance and general handiness that is becoming difficult to obtain in a stock boat due to the present day accent on ocean racing and all-out performance.

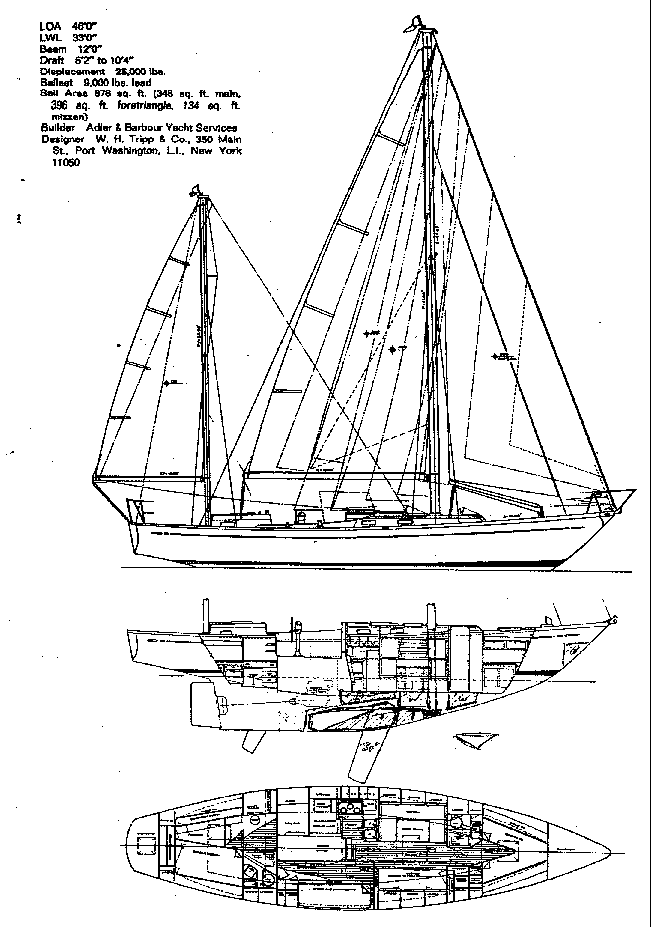

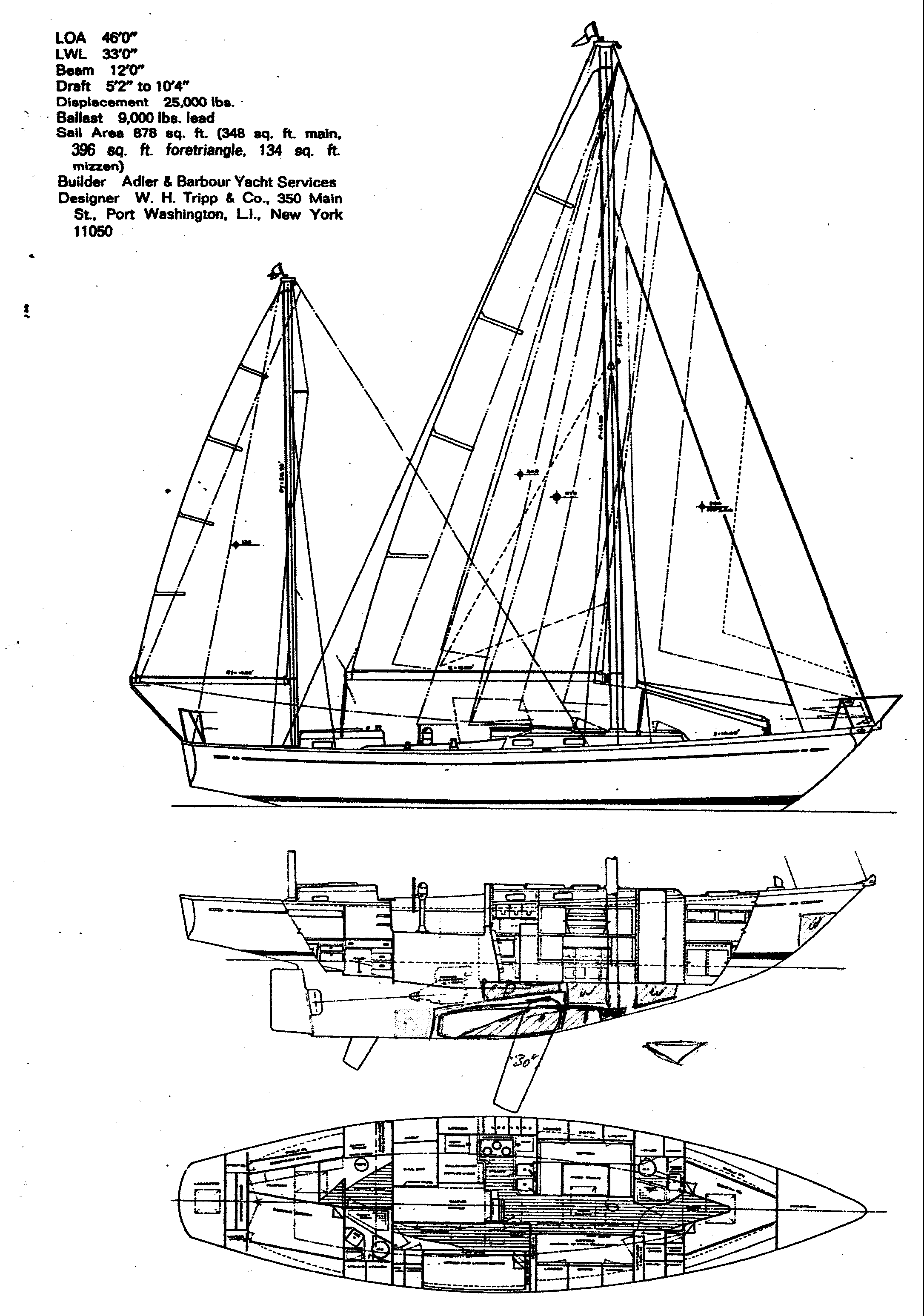

Plan of U.S. 46

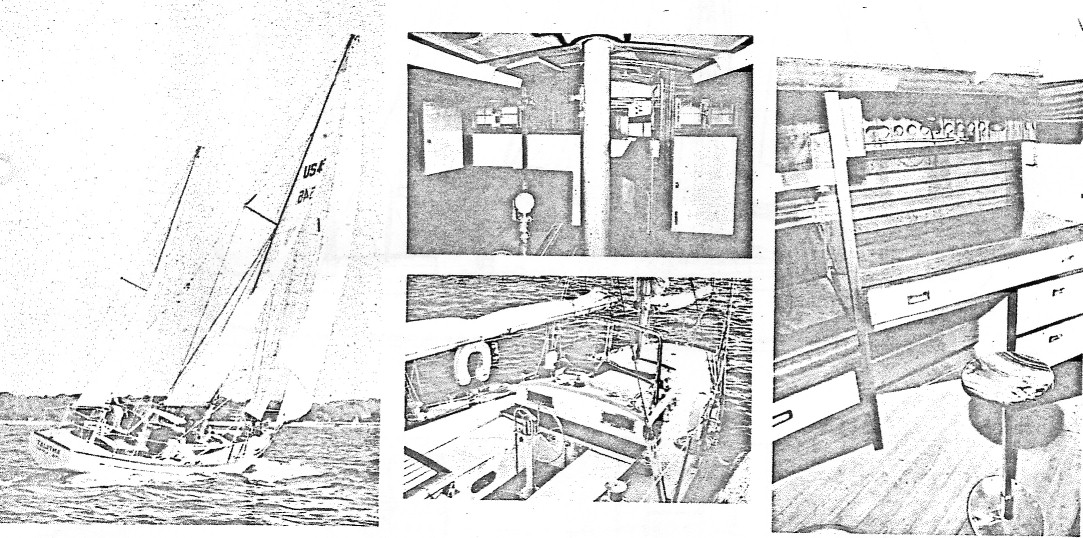

Figure 2: Magazine Review of U.S. 46

There’s not much information out there on the U.S. 46.  The few bits that have been found are:

When the transition occurred from the model being called the U.S. 46 to the G46 isn’t clear.  A Grampian G30 magazine ad from 1971 was found that shows the hull profiles of the G17, G22, G26 and G30 and mentions: “Also available, kit boats from 30’ to 46’”, but it wasn’t called the G46 at this time.  The hull profile and the name G46 started to appear in Grampian advertisements and brochures about 1975.  Both BUC [4] and NADA [8] used boat price guides only list the G46 in 1976 and 1977 model years.

Gill Bibby was production manager at Grampian, and still has many original blueprints.  The only 46 drawing among these is of the rig and sailplan.  The titleblock had been cut off this drawing, so the draftsman and date are unknown, but this drawing was done in pencil on paper with a date code of 12-72.  Bill Tripp Jr. died in 1971, so this drawing was done by someone at Grampian.  The sailplan is very similar to that of the U.S. 46, with a primary difference a lack of the second forestay and staysail.

Grampian Production

In the United States boats can be officially documented with the Coast Guard.  The database contains information on some 322,000 vessels, both recreational and commercial.  58 list Grampian Marine as the builder.  Of these:

Canada has a similar system, known as the Ship Registry [9].  Of the registered boats built by Grampian, there is likely one G46.  Optimistra is listed as 38 foot length, 12 foot beam, 56 horsepower diesel and a gross tonnage of 16.41 metric tons.  The beam, power and gross tonnage are consistent with the G46.  Obviously the length is too short, so this is likely a typo in the registration.  This boat was built in Edenton, N.C. in 1976, and is almost certainly the last G46 built before Grampian closed.

The earliest 46 known is Solitaire, built in 1969.

An order for six G46s was placed by Adler & Barbour, possibly in 1970.  The hulls and decks for these were molded at Grampian in Oakville and sent to Holland as ship deck cargo for fitting out.  From there it is believed they were sailed to the Caribbean and entered the charter trade.  Adler & Barbour, described as the builder of the U.S. 46 in the article above, does not show up in the Coast Guard database as the builder of any documented vessel.  No other information on them building yachts has been found, so it appears they may have been more of a broker than a builder.

Gill estimates that a total of about twelve G46s were made by Grampian.  Except for the very last (see
below), none were completed by Grampian.  Instead, they were sold as kit boats to be fitted out by the customer.

The last G46 built by Grampian was done at the Edenton, North Carolina plant as a custom order in 1976.  Gill Bibby was sent down from Oakville to complete this boat (see his story in the Grampian History section of this website).  Without repeating his account, a few photos of this boat are below.  The last report on this boat came several years ago.  It had been donated to a charity in Florida.  They sold it to a buyer in Alberta.  The boat Optimistra, whose home port is listed as Toronto, appears to be this boat.



Last G46 Maiden Voyage Last G46 Maiden Voyage Last G46 Maiden Voyage
Figures 3, 4, 5: Maiden Voyage of Last Grampian 46


The second last G46 was produced in Oakville in 1975 and was completed by Gill in Toronto after Grampian closed.  This boat and her owner were lost off Cuba, with the presumed cause as piracy.

The Molds

Below is a photo of Grampian G46 mold,   You can see how the bow and stern don’t match the rest of the mold.  At some point the bow and stern were cut off the mold and replaced.  Likely this was the mold for Bill Tripp’s U.S. 41, and the U.S. 46 was created by stretching the bow and stern of the U.S. 41.  The comparison of the profiles of the U.S. 41 and the G46 shows that the stern of the G46 projects considerably farther beyond the rudder and the angle of the stem is lower than on the U.S. 41, but the rest of the hull certainly looks to be the same.

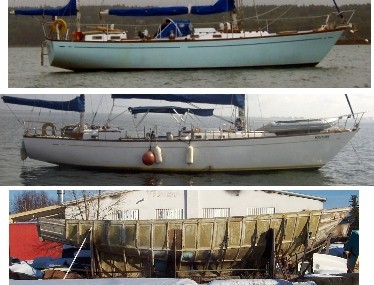

U.S. 41, U.S. 46 and Mold

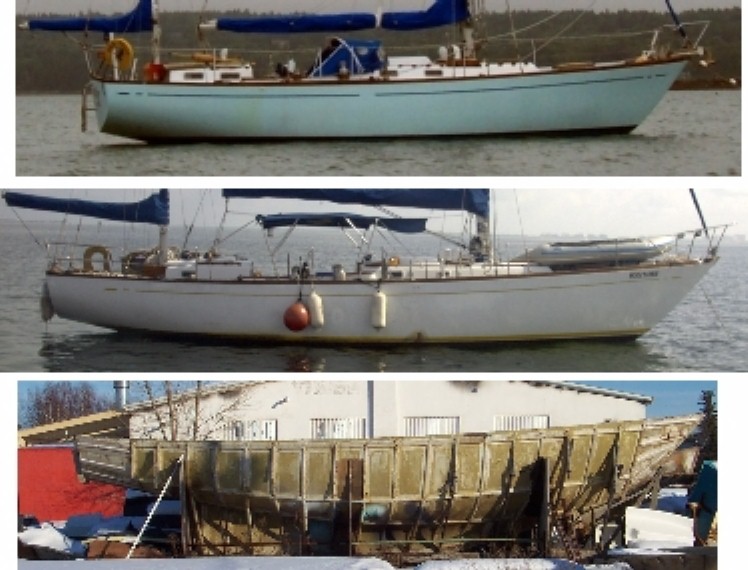

Figure 6: Profile Comparison of U.S. 41 (top), U.S. 46 (middle) and G46 Mold (bottom)


Another detail is the cove stripe on the hull topsides – a stylized arrow with the arrowhead and a single dash at the bow, a continuous stripe, and a dash and arrow tail at the stern.  This form of stripe appears on the U.S. 46 drawing above, as well as the G46 sailplan drawing done at Grampian, and appears in the G46 hull mold, as shown below.  Grampian owners will see that this stripe differs from the Grampian “fish” appearing on the cove stripe of all other Grampians of the time.

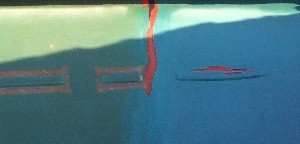

Cove Stripe Tail Cove Stripe Head
Figures 7 and 8: Cove Stripe Detail in Mold

There’s a difference in the cove stripe between the drawings and the boats.  Have a look where the tail ends relative to the transom.  The drawings show the stripe ending about a foot from the transom, but the distance in the mold and in photos of the boats shows it ending about 3½ feet from the transom.  It appears that when the stern of the mold was extended converting from the 41 to the 46, the cove stripe wasn’t extended to match.  (The color changes in the mold surface show where the cut line was.  The red material is a filler used to smooth the mold surface at the joint.)

Grampian molded hulls in Oakville using this mold, then moved it to Edenton, N.C. in 1976 to produce the last G46 there.  When Grampian closed the following year, Tanzer Yachts took over the Edenton plant.  Gill visited them in 1980, and the G46 molds were still there, covered with overgrown vegetation.

At this time Douglas Smith ran a company called Barrie Yachts in Ontario that produced kit sailboats.  He and a friend decided they would each like to build a G46 for themselves to sail around the world in.  He retrieved the molds from North Carolina and in 1981 or 1982 they molded two hulls.  Douglas’ boat was soon traded for a cottage, while the other boat is still under construction.  This is the boat that can be seen just off Highway 400 north of Barrie, Ontario.  The owner has an original brochure from Barrie Yachts that calls the boat the “Annapolis 46”.  One of the kit boats produced by Barrie Yachts was the Annapolis 26, and it could be they renamed their version of the G46 as the Annapolis 46.  The primary difference seems to be that the keel ballast is internal, rather than external, and there are no centerboards.

The only information that has been found on the Annapolis 46 is rig dimensions found with on-line sailmakers [10].  The table below gives the dimensions for the three versions of this boat.  The U.S. 46 and G46 are essentially identical, but the Annapolis 46 has most dimensions slightly smaller.  Bruce Smith, Douglas’ son, mentioned that he has the molds but no technical information or drawings.  His father probably didn’t have the rig dimensions of the U.S. 46/G46, so was forced to design his own rig, resulting in different dimensions for his version of the boat.

Table 1: Rig Dimensions for the different boat versions
BOAT  I J P E PY EY
ANNAPOLIS 46 44.5 17.3 39.0  18.5 18.5 9.0
GRAMPIAN 46 47.6 16.7 41.0 17.0 26.5 10.3
U.S. 46 47.6 16.7 41.0 17.0 26.9 10.3


Bruce Smith went looking for his father’s 46 several years ago.  It had been in Gorrie, Ontario for many years, apparently falling over in its cradle and being damaged.  This boat was rebuilt into Tatiana W, and modified from a center cockpit yawl into an aft cockpit sloop.  The Figures below show this new sloop rig and aft cockpit deck arrangement.  (The comparison Figure has the Tatiana W. photo reversed to point the same way as the other boats.)

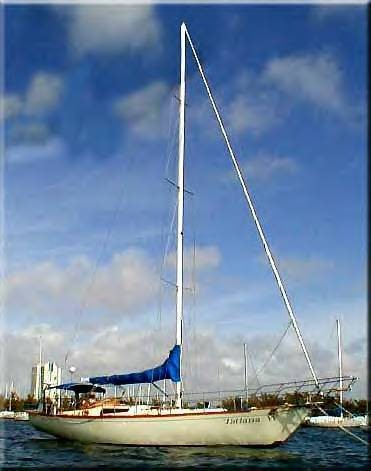

Comparison of Tatiana W. Tatiana W.

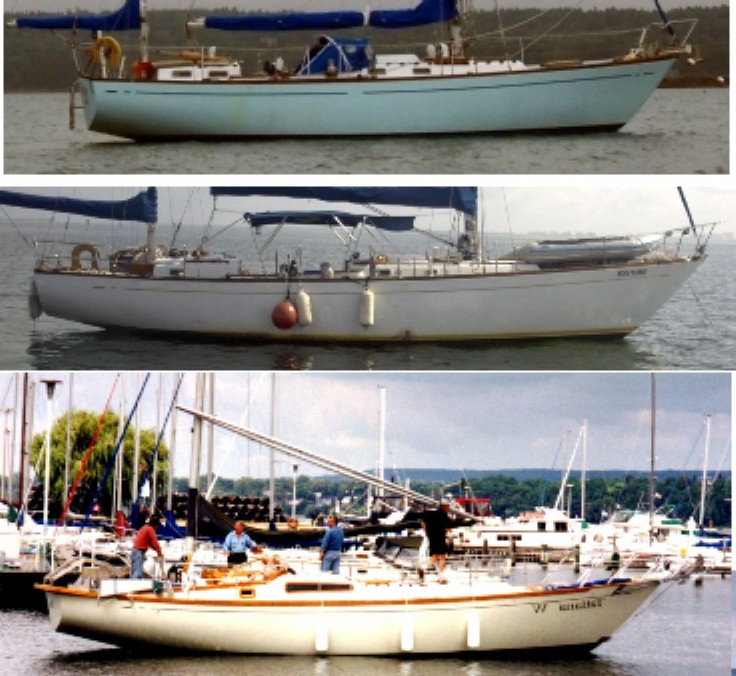

Figures 9 and 10: Tatiana W compared to the U.S. 41 and 46 (left) and showing sloop rig (right)


Tatiana W is something of a puzzle.  Her webpages  describe her as a 1999 Grampian 46.  They also claim “custom built by most respectful [sic] yards in Canada” and list “Builder: Grampian, Hager Yachts, Canada”.  “Hager Yachts”, or “Hagen Yachts” as it is spelled in the Canadian Ship Registry entry and in a survey, doesn’t seem to have existed as any kind of company in Ontario.  So the reference to a respected builder’s yard apparently also must mean Grampian, but clearly Grampian Marine had nothing to do with her construction.

Tatiana W. has been renamed Eye to Eye and had been listed during the Fall of 2006 at Yachtworld [13].  Initially she was advertised as a 1999 Grampian, but that was changed to a 1999 46' “Custom Tripp Sloop.”  Adding to the confusion is the survey mentioned in the listing [14] that calls the boat a “Tripp Grampian 46” and “Grampian 46”.  Although she was initially built in 1981 or 82 (notice the surveyor’s reference to “an extensive refit”), apparently boats don’t acquire a model year until they are registered, so Tatiana W./Eye to Eye is listed as a 1999 model.  The current owner reported the boat’s weight at a recent haulout was measured at 31,500 lbs., compared to the 25,000 lbs for the Grampian built boats, and there are no keel centerboards, further suggesting Grampian wasn’t the builder.


The Future?

The molds are available, the sailplan and some technical data has been found, and a few of these boats have been located.  All we need is someone to step up and put them back into production.

Acknowledgements

Special thanks go out to Gill Bibby for much of the information presented here.  Bruce Smith has also been instrumental in filling in some of the gaps.  Many thanks to both these gentlemen for their assistance.


References

1.    An example of a 1967 U.S. 41 built by Grampian was sold in July 2006 at Yachtworld, listing number 1425768.  This listing is no longer available to the public, but is accessible by boat brokers.
2.    There is an extensive article about Bill Tripp Jr. in the November/December issue of Good Old Boat magazine.  The same article appeared in Professional Boatbuilder magazine, Feb/March 2007 page 56,
3.    This review was found as a photocopy.  It appears likely to be from Sail magazine, possibly January 1971, pp 40-41, but this needs confirmation.
4.    BUCValu used boat value guide is available free on-line at http://www.bucvalu.com/ You need to register to look up boat values.
5.    See the website for the yacht Solitaire at http://sailboat46.tripod.com/
6.    Search the Coast Guard documentation database for Solitaire at http://www.st.nmfs.noaa.gov/st1/CoastGuard/VesselByName.html, entering the Coast Guard official number of 521894 for this boat.
7.    The Yacht Racing Association of Long Island Sound website is at http://www.yralis.org/
8.    Available at http://www.nada.com/
9.    The Canadian Ship Registry can be searched on-line at Welcome Page | Page d'accueil
10.    Sailboat rig dimensions are found at http://www.mauriprosailing.com/sailboat-rig-dimensions.htm
13.    This boat was listed on Yachtworld, listing number 1475502 during the Fall of 2006.
14.    The survey provided by the broker was an insurance survey #5004-3 of May 2004 by David Alter of Miami, FL.
