GRAMPIAN  23 DIAGRAMS


The Grampian 26 Manual contains a great deal of information that also applies to the Grampian 23.

Here are some diagrams that apply  specifically to the Grampian 23 or are common to the G23 and other models.

Link to Grampian 26 Manual    (Need  Acrobat Reader to view manual)

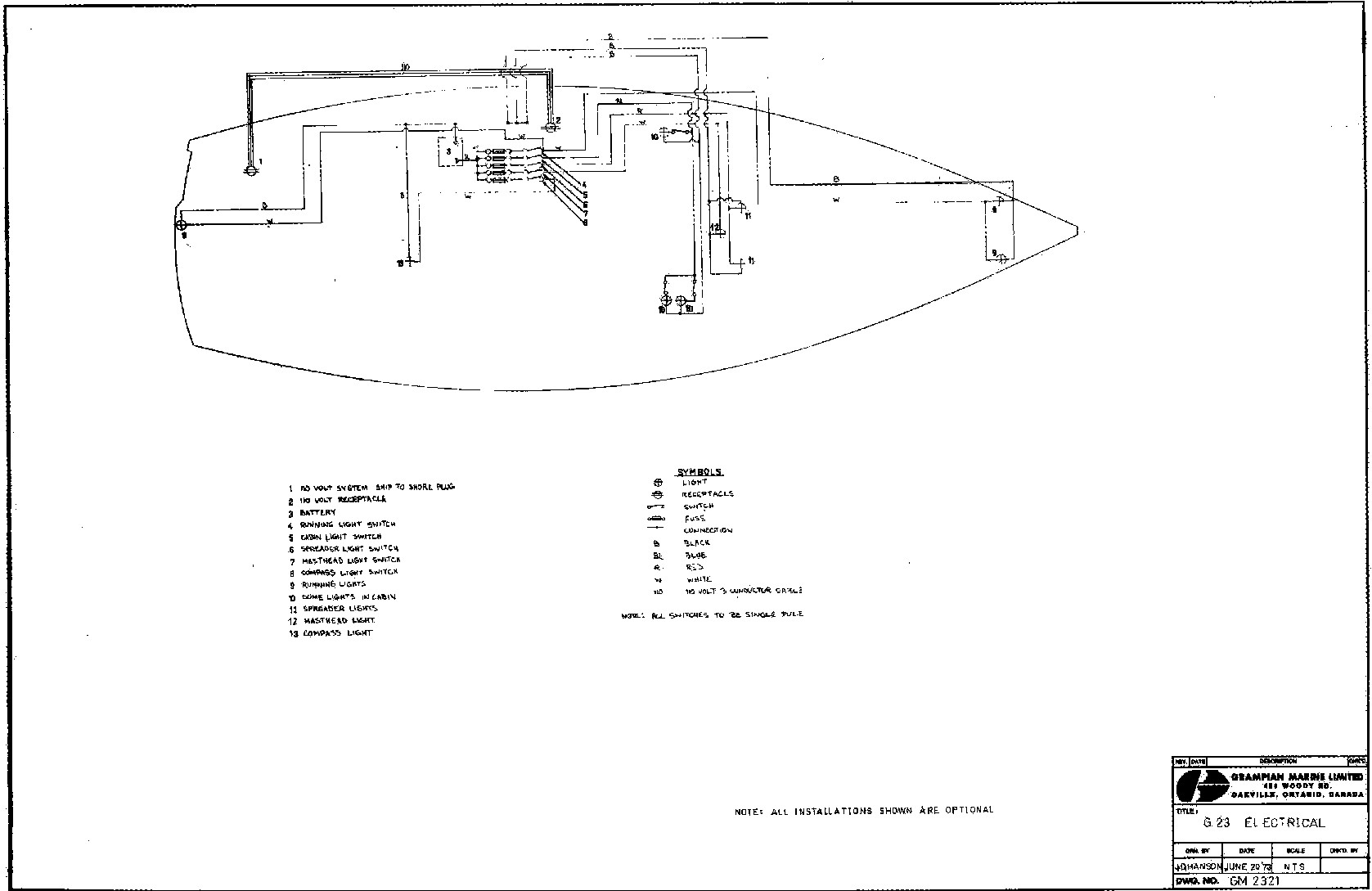

 G 23 electrical.JPG (160674 bytes)   G23 Electrical Wiring Diagram

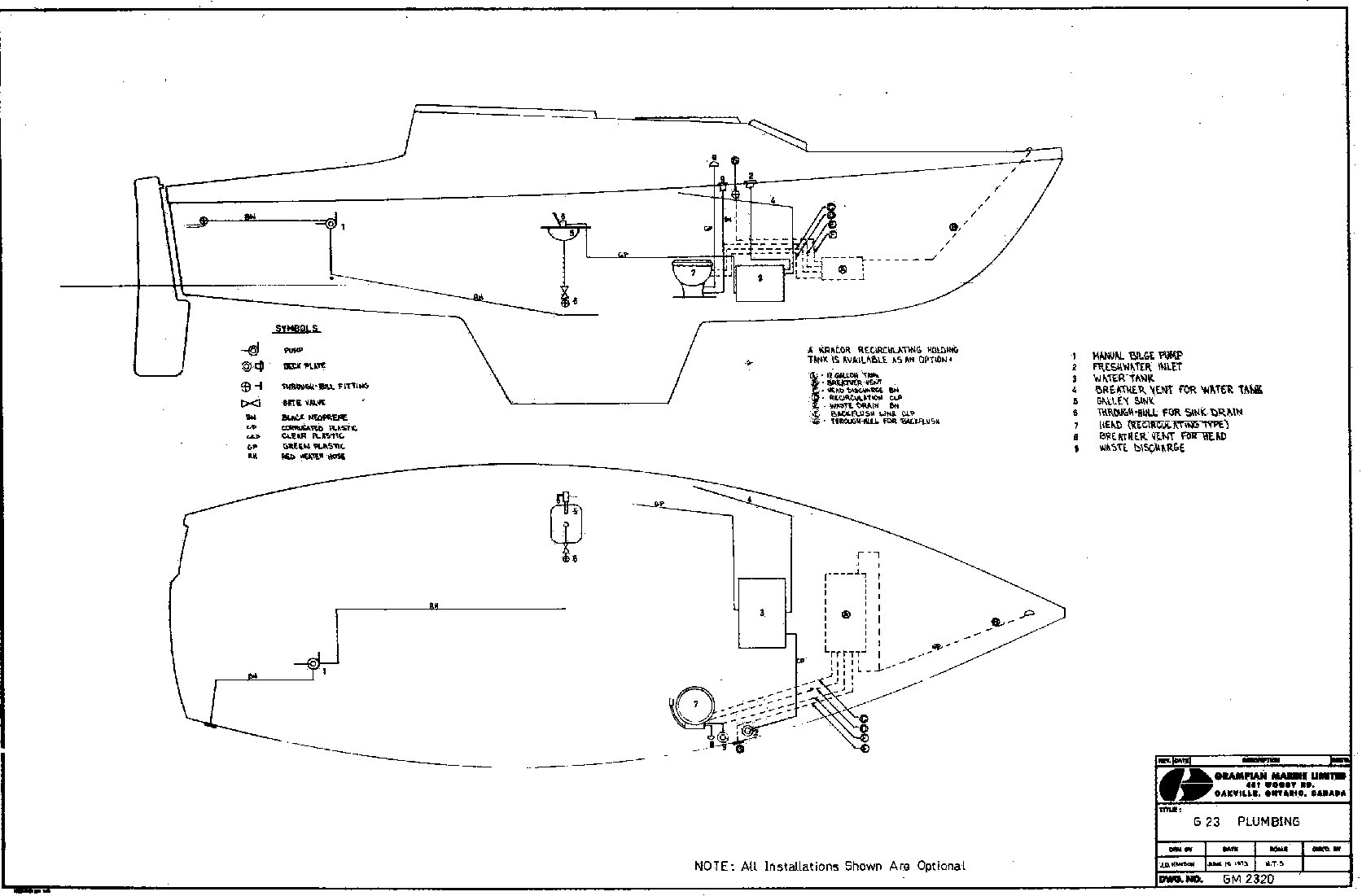

 G 23 plumbing.JPG (200795 bytes)  G23 Plumbing Diagram

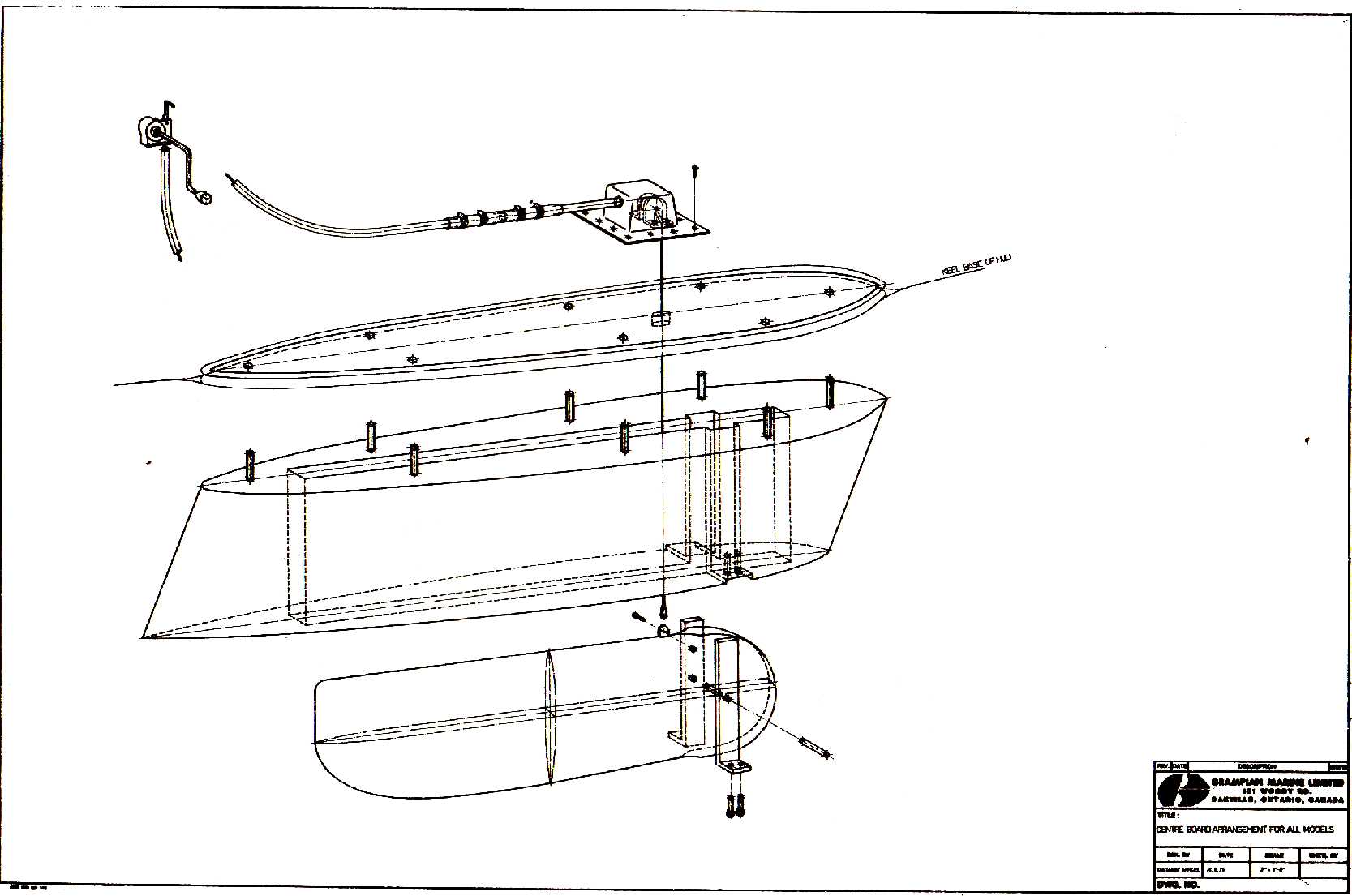

   Centre Board Diagram
